SS316L Stainless Steel Powder
Shipping estimation
HK Post/DHL Air Delivery-5-8 working days:($0.00)
New product
Spherical SS316L stainless steel powder made for 3D printing (additive manufacturing). Choose between different sizes. Compatible with most modern laser sintring machines.
Intro
The 316L stainless steel powder is a powder that is specially optimized for shaping objects in SLM technologies, this includes the company EOS Selective Laser Melting technology, for example the EOSINT M series. Further is ConceptLaser, Renishaw, the United States 3Dsystems and other companies with selective laser melting technology or EBM (Electron Beam Melting) technology.
Buying Requirements
Material and spherical size can be tailored according to your demand. Material and production process are all patented and approved for commercial use.
Order will be custom made as we do not have this in stock for immediately shipment.
Minimum Order Quantity is: 20 KG per order.
Sample can be provided (varies from 500 gram to 2KG). Please checkout with sample, freight is included in the price.
Price is not including shipping cost when order none sample. You will get a seperate invoice for shipping. For big orders we or you can arrange boat shipment.
(Estimated shipping cost is 15-25 USD/KG to EU and USA through air)
"Please contact us before making any order! "
We offer most of the materials available in the market, please contact us and we will establish the product at the store.
Please contact us before making any order!
We offer most of the materials available in the market, please contact us and we will establish the product at the store.
Summary
The SS316 corresponding grades is 00Cr17Ni14Mo2 (China Structural Steel), with 2 ~ 3% added Mo for higher corrosion resistance and higher temperature strength. This SS316 is in official language most known as typical stainless steel.
The Stainless Steel has excellent corrosion resistance, high temperature resistance, and excellent creep resistance. The original idea of the SS316 is to make it useable for many complex structures, for example parts for the food industries, machinery parts, marine equipment’s, small industrial components and other complex structures.
Due to the mode of construction and intelligent hierarchical mode, the iron-based alloy parts’s mutually-different can be solved by heat treatment, the SS316L's melting point is 1375-1450℃, normally treatment is generally carried out in a state of 1010-1150 ℃
Compatibility
SLM, SLS, Laser Cladding, EBM and other technology based on the same functionality.
Internal Quality System Certification Data
|
Internal Quality System Certification Data |
|
|
Chemical composition |
Fe (balance) |
|
Cr (17.2 – 18.5 wt-%) |
|
|
Ni (11 - 14 wt-%) |
|
|
Mo (2 - 3 wt-%) |
|
|
Si ( <1 wt-%) |
|
|
Mn (<1.5 wt-%) |
|
|
Cu (<0.5 wt-%) |
|
|
O (<800ppm) |
|
|
Density |
7.93 g/cm³ |
|
Granularity |
-250 |
|
The specific surface area of the powder particles |
0.102cm2/g |
|
Sphericity |
≥94 % |
|
Recommended thickness |
30, 40, 50μm |
|
Bulk density |
61.0% |
|
Relative density of formed parts |
Close to. 100 % |
Close up powder illustrated as follows
316L formed parts mechanical properties
|
316L powder Rapid Prototyping Parts Related Indicators |
||
|
|
As built |
After age hardening |
|
Typical achievable part accuracy |
|
|
|
- small parts (< 80 x 80 mm) |
-approx. 40 μm |
|
|
- large parts |
-approx. 90 μm |
|
|
Surface roughness |
|
|
|
- as manufactured |
-Ra 16 -20 μm, Rz 80 – 100 μm |
|
|
- after shot-peening |
-Ra 4 - 10 μm, Rz 18 – 42 μm |
|
|
- after polishing |
-Rz up to < 0.2 μm |
|
|
Ultimate tensile strength (include horizontal and vertical direction) |
typ. 670±40 MPa |
typ. 580±40 MPa |
|
Yield strength (Rp 0.2 %) |
typ. 350±40 MPa |
typ. 250±40 MPa |
|
Elongation at break (include horizontal |
typ. (36± 10 ) % |
typ. (47 ± 7) % |
|
Hardness |
Typ. 200± 10 HV |
|
|
Maximum long-term operating |
Approx. 350°C |
|
Parts Printed with this material

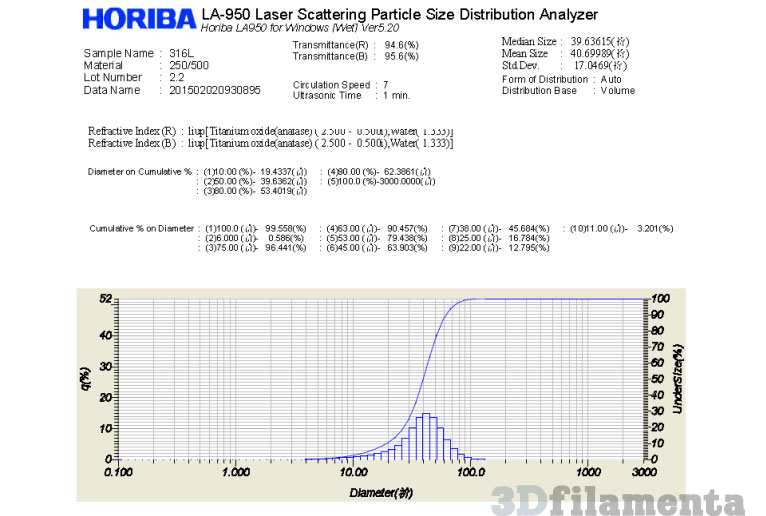

Particle Size Distribution
